Product Details
KLEIN TOOLS
Erection Wrench 1-1/4" Bolt
for U.S. Heavy Nut KLEIN TOOLS 3214TT

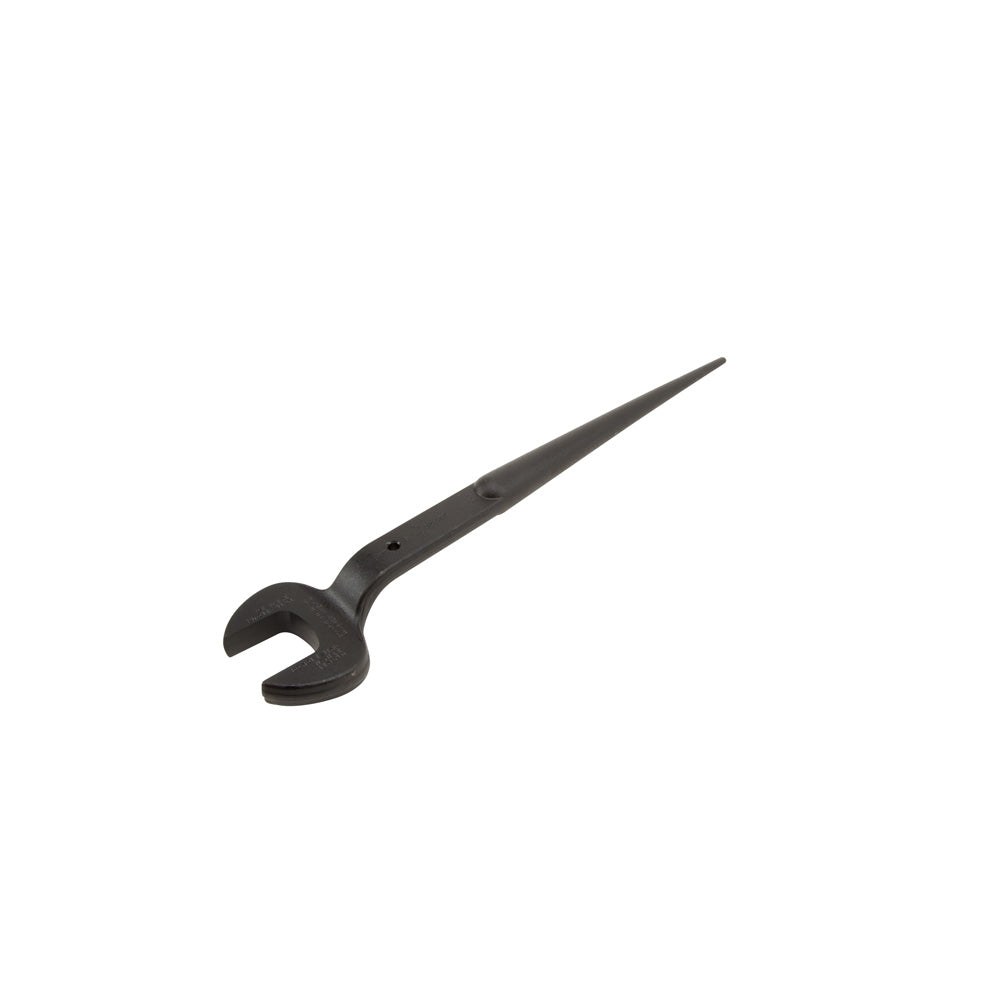

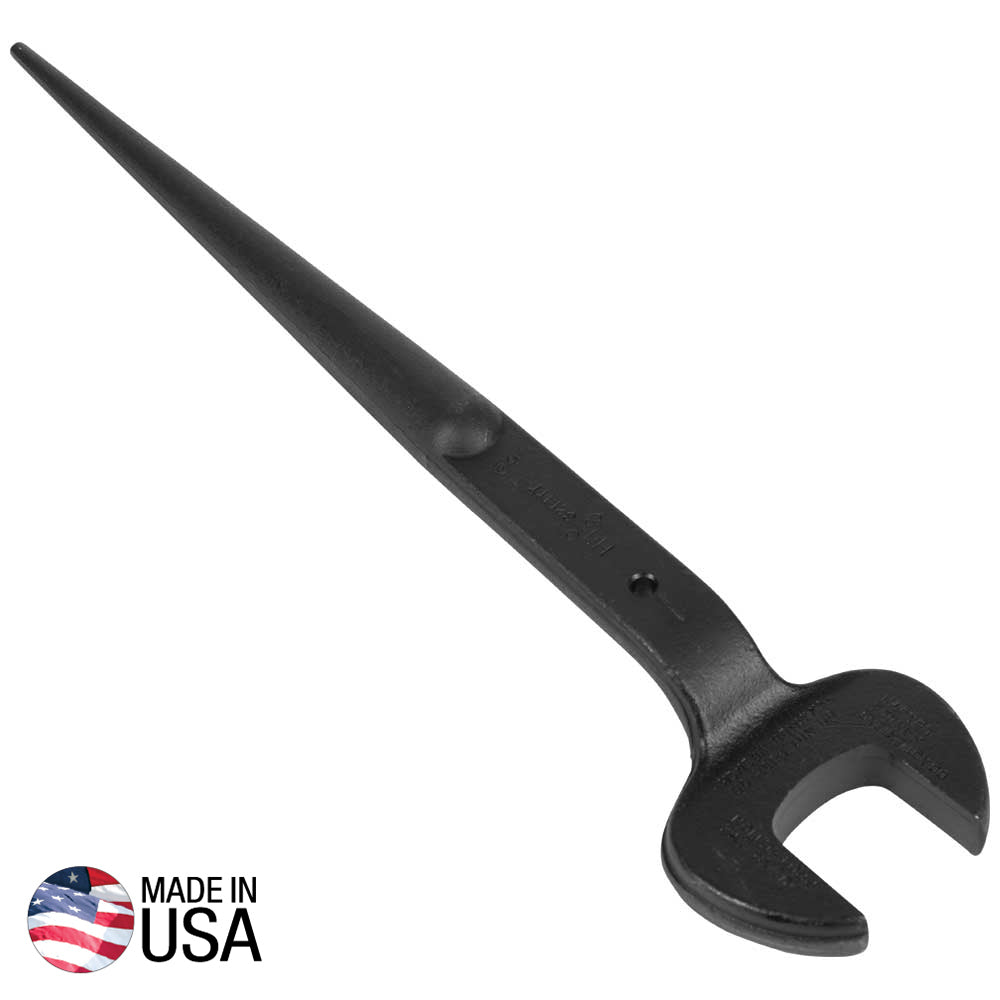

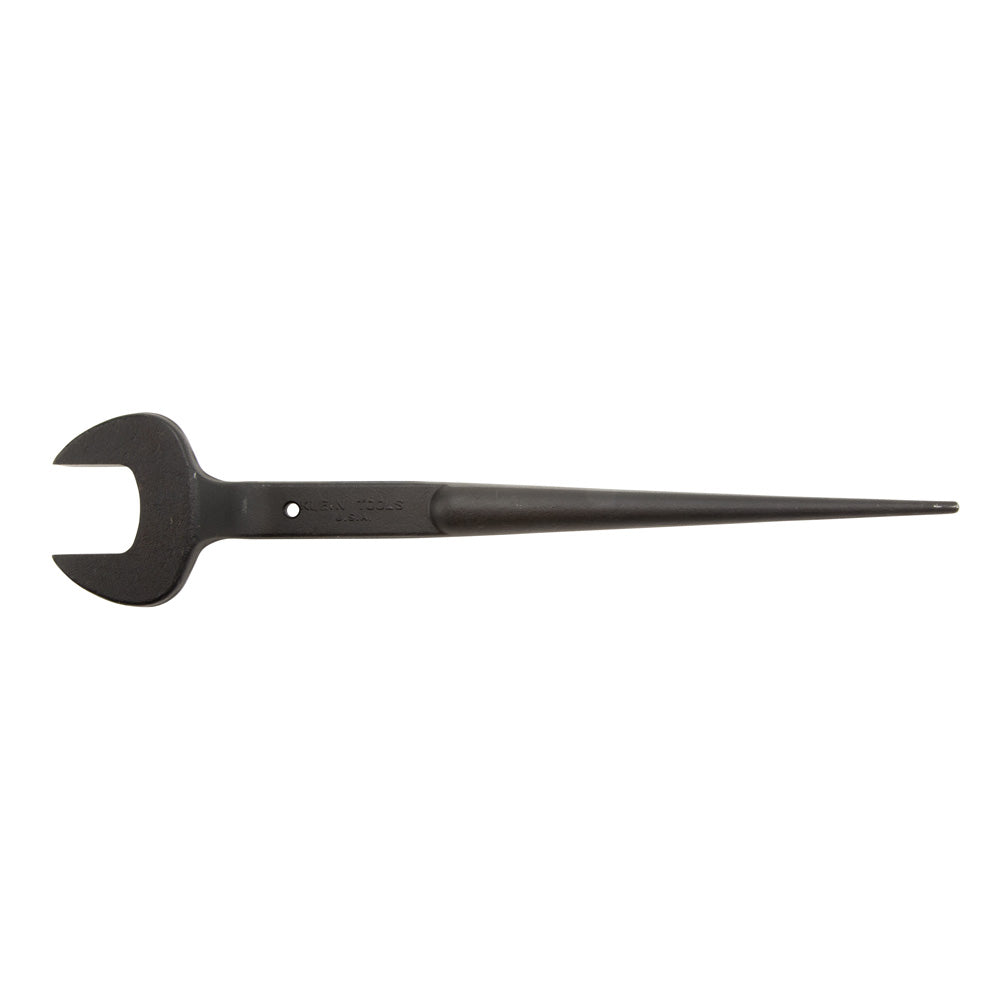

Pictured: 3214TT

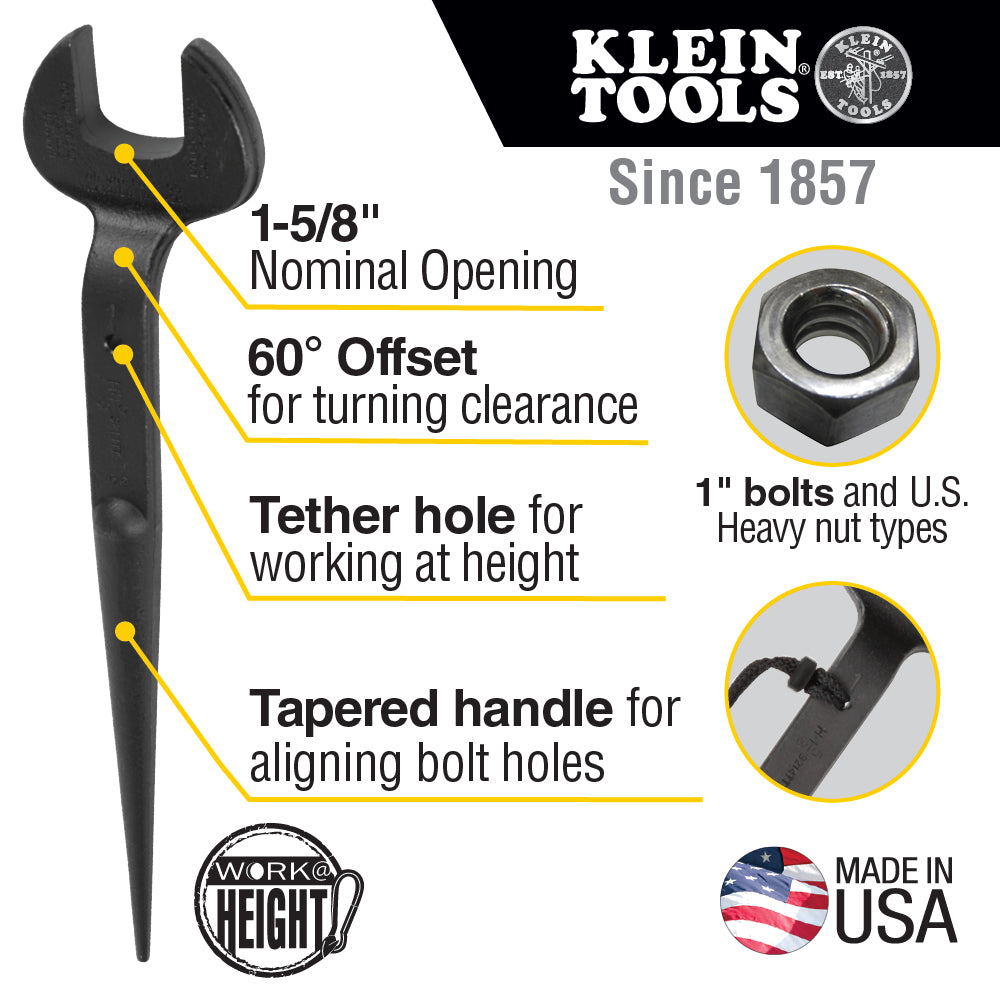

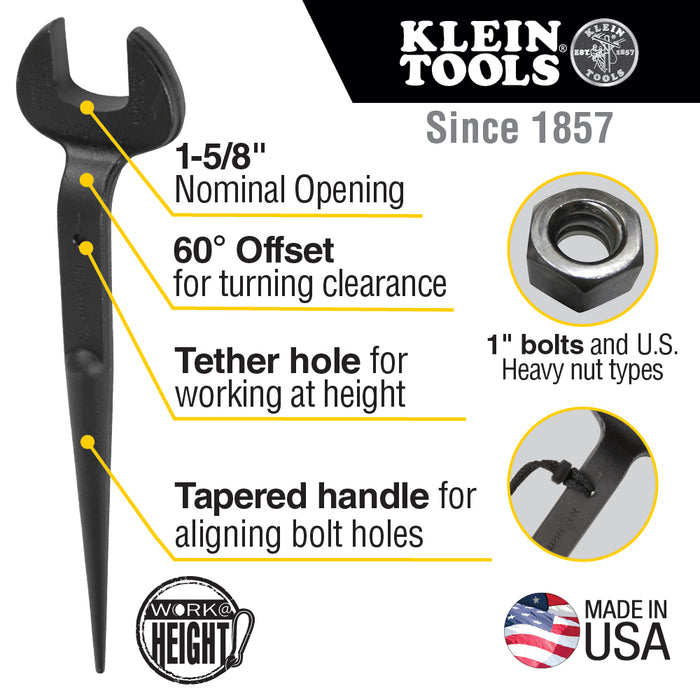

Erection Wrench, 1-5/8" Bolt, for U.S. Heavy Nut with Hole

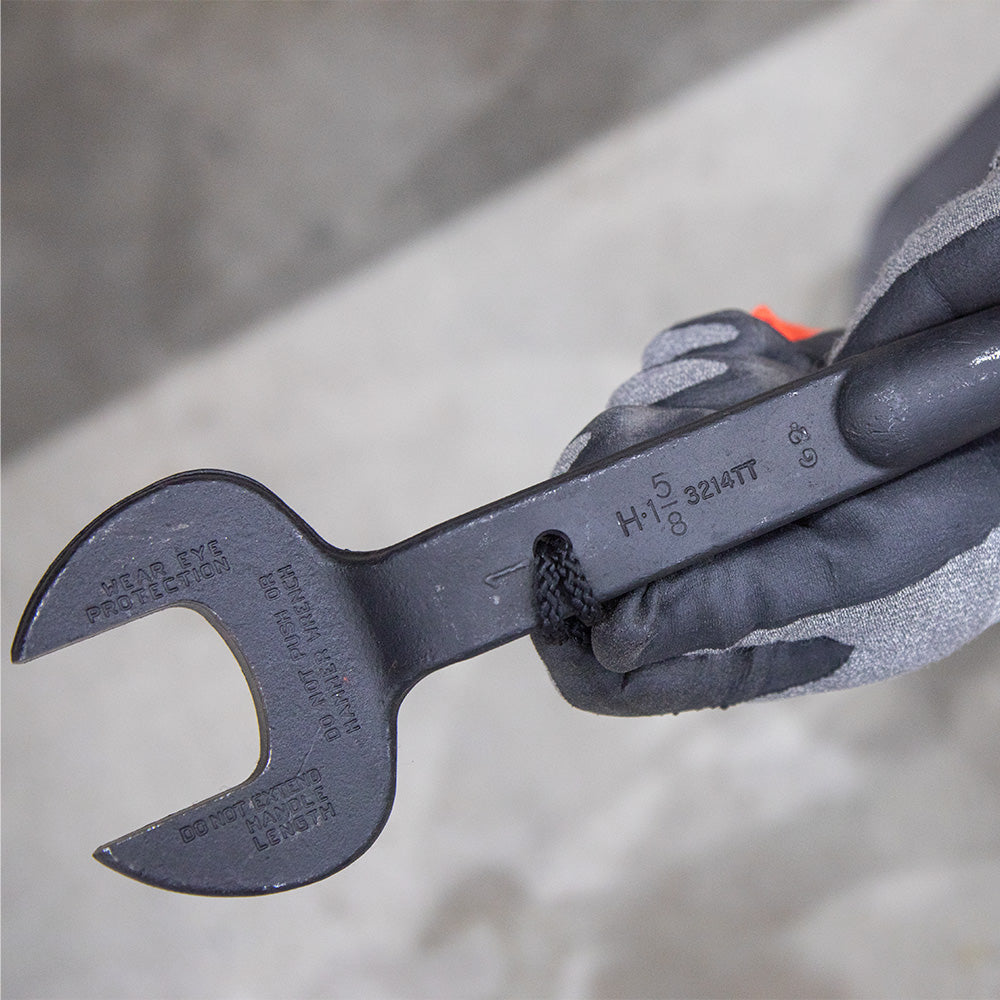

- Cross-hole with no sharp edges for tethering
- Forged from select alloy steel to withstand high-leverage and heavy loads.
- Extra-heavy-duty head area gives maximum strength and durability.

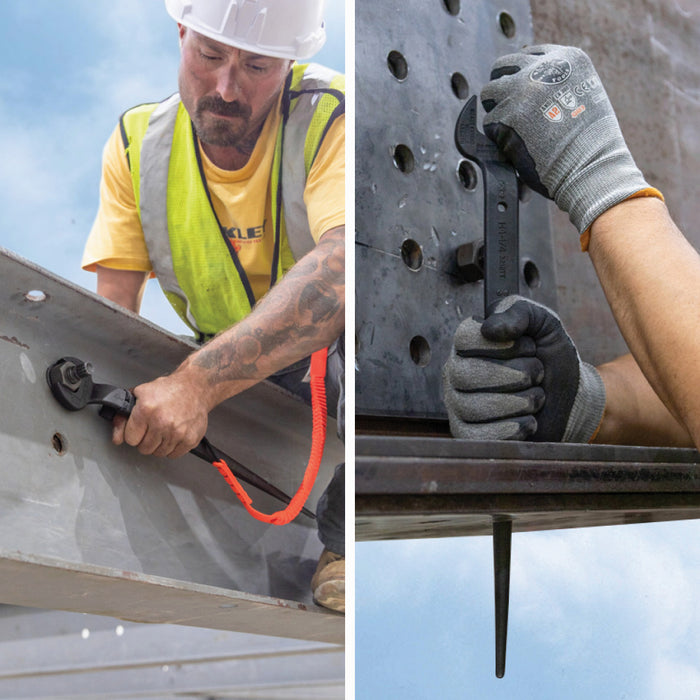

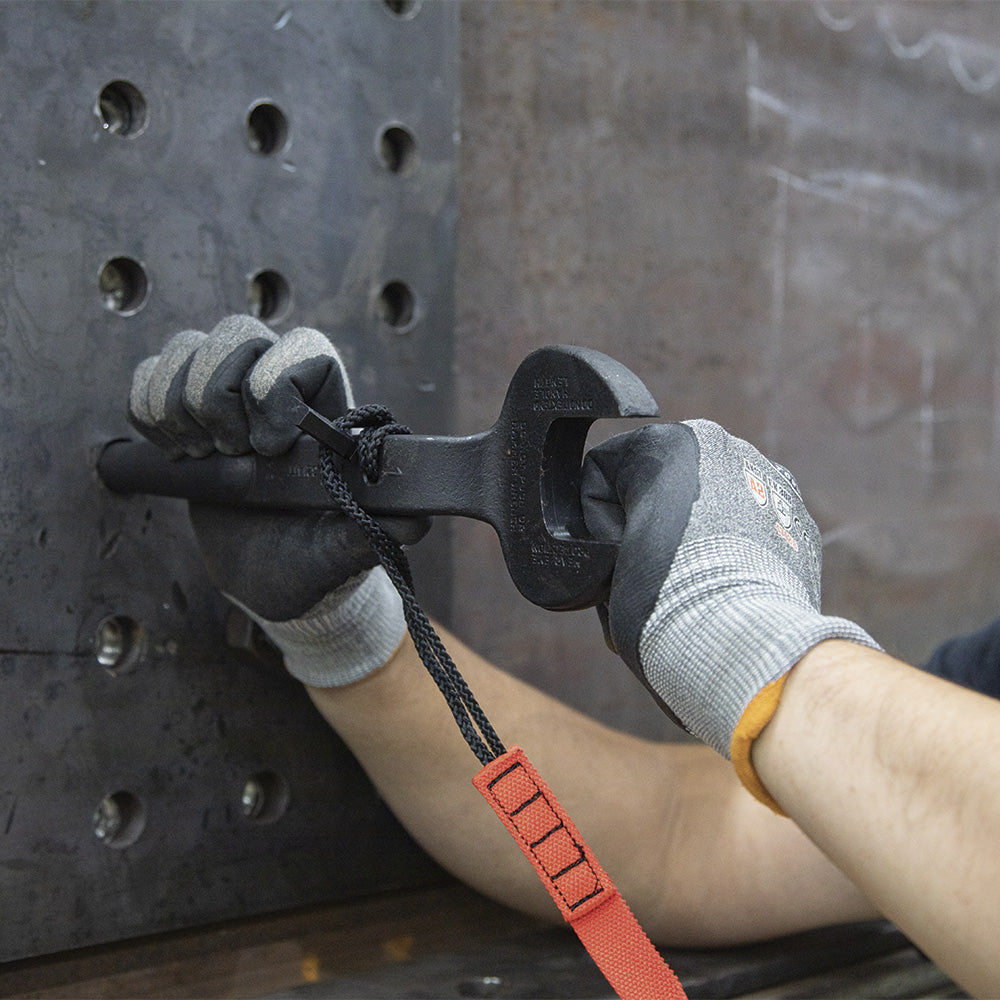

- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding.
- Extra-large hub area works on larger diameter holes than other wrenches.

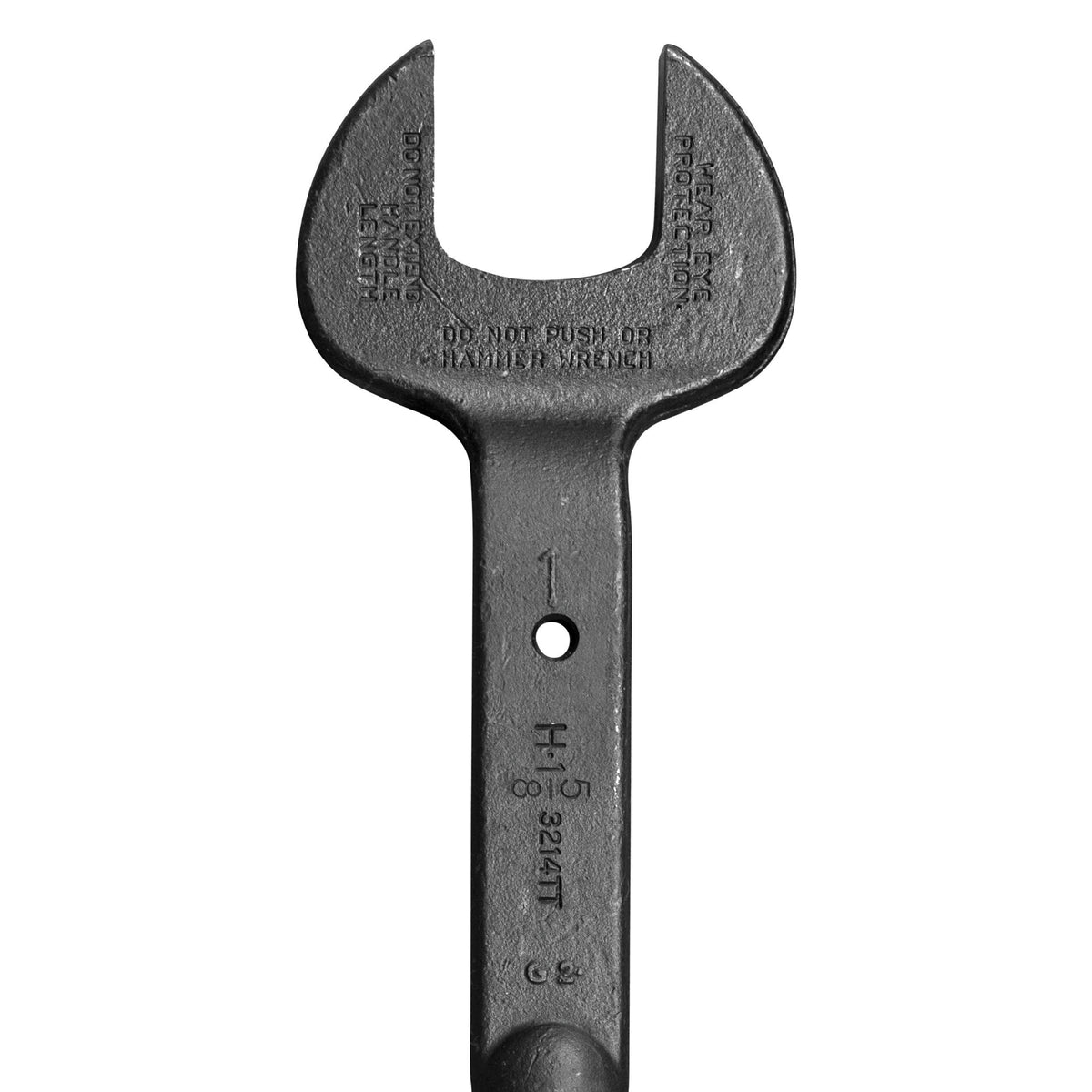

- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification.
- American Bridge design.
- Tether not included

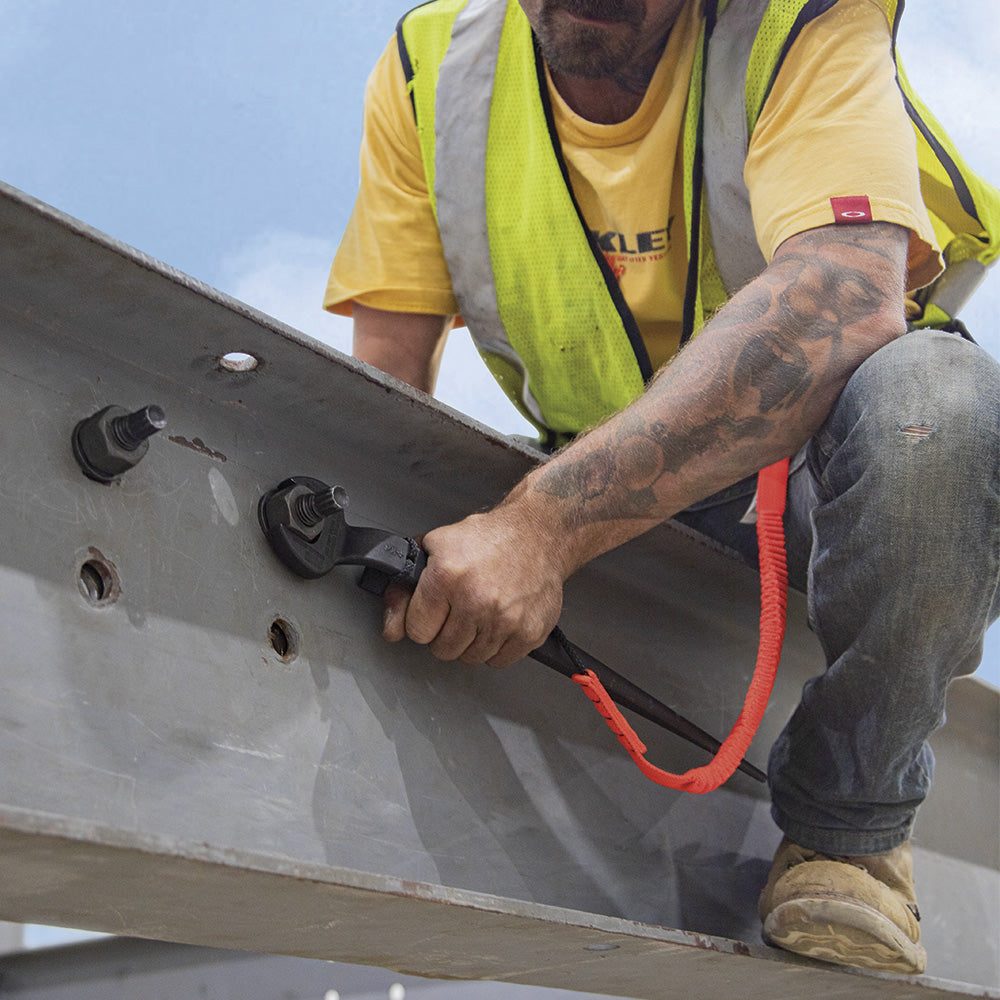

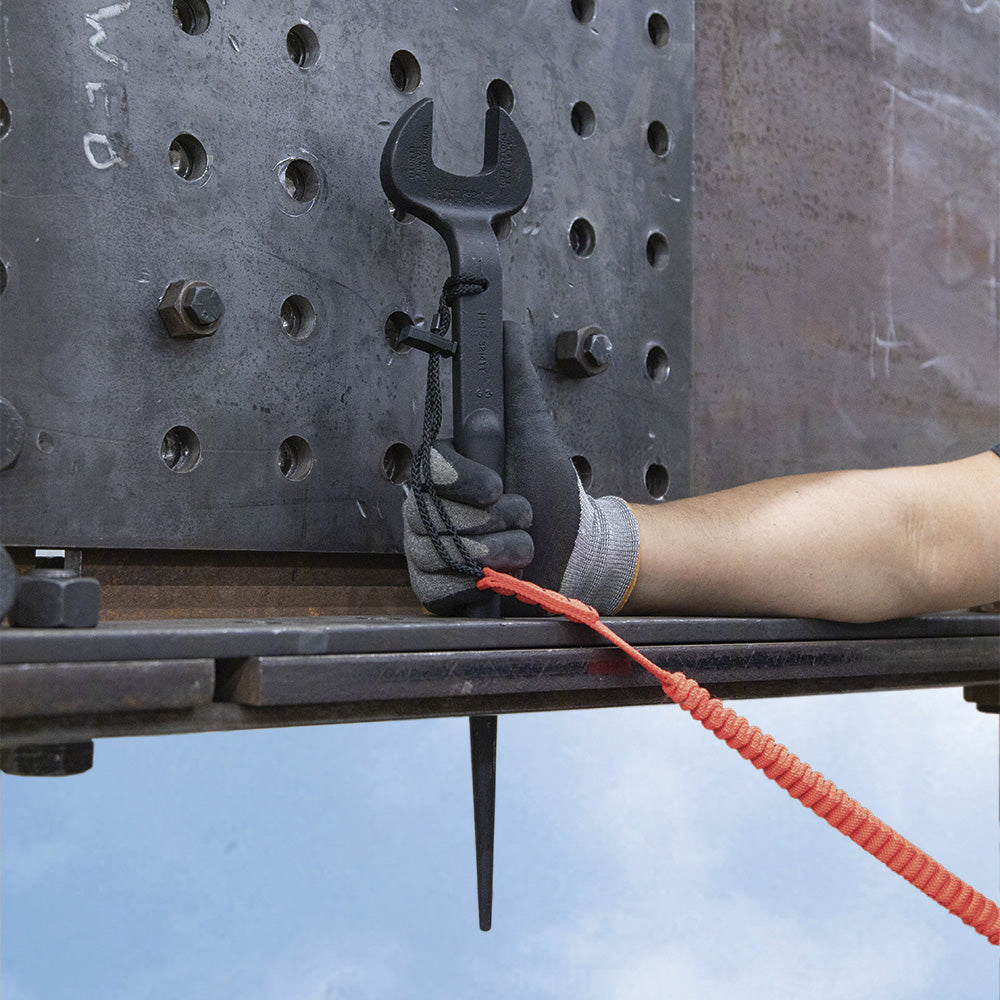

Forged from select alloy steel, Klein Tools' 1-5/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 1-Inch bolts and U.S. heavy nut types, the extra heavy-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes. Includes a built-in hole so tool can be tethered when working at height.
Specifications
Type: Spud Wrench

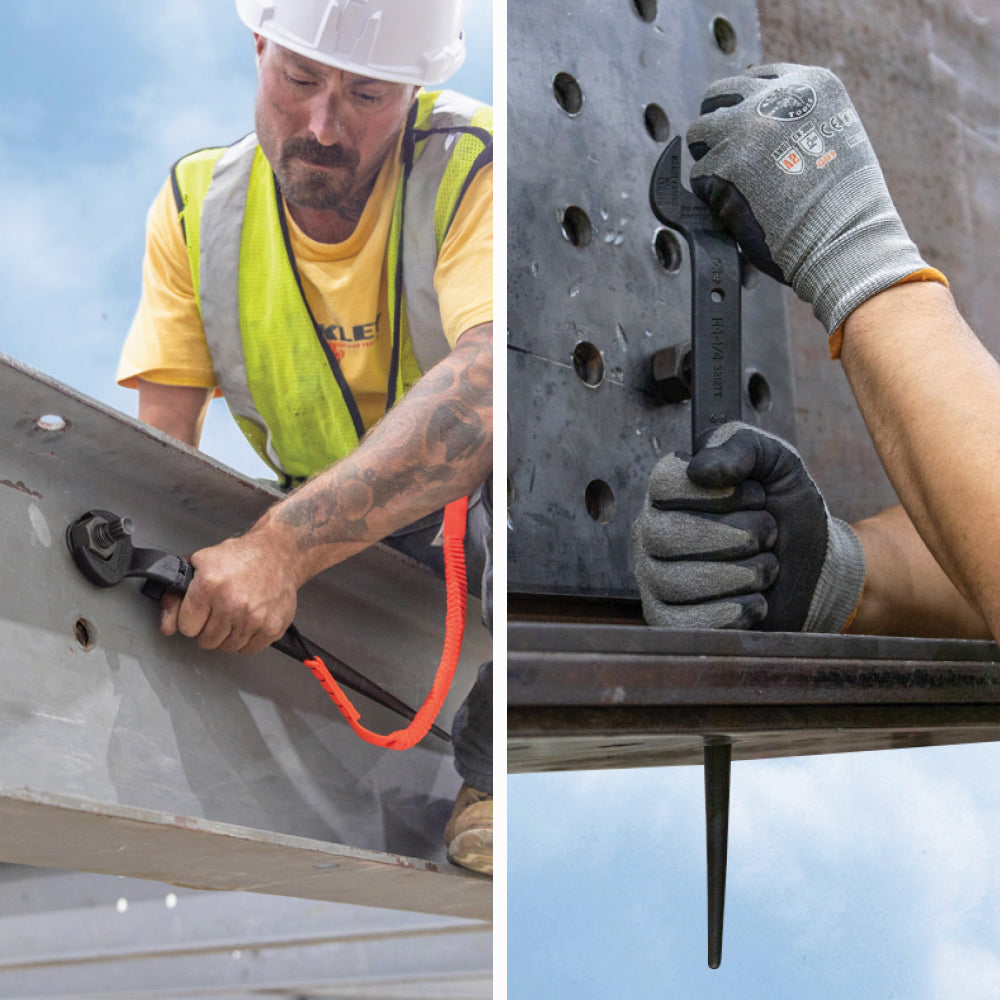

Application: Connecting Steel Members
Special Features: Hole for Tethering
Overall Length: 18'' (45.7 cm)
Overall Height: 1'' (2.54 cm)
Overall Width: 3.6'' (9.1 cm)
Material: Alloy Steel
Finish: Black Oxide with a Rust Preventative
Nut Type: U.S. Heavy
Heavy Nut Size: 1'' (2.5 cm)
Nominal Opening: 1-5/8'' (4.1 cm)
Head Width: 3.625'' (9.2 cm)
Taper Diameter: 1-1/8'' to 1/4'' (2.9 to 0.6 cm)

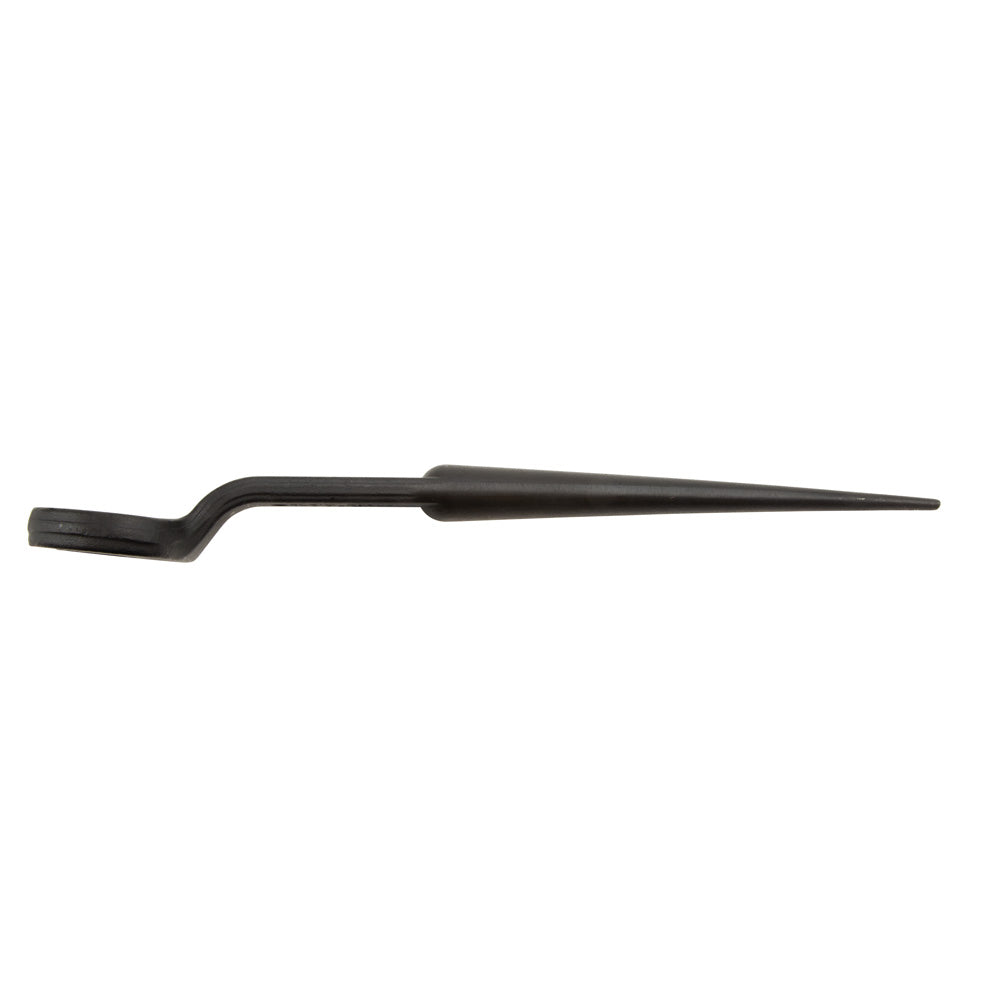

Offset Angle: 60°
Weight: 3.4 lb (1.5 kg)
UPC: 092644680700
